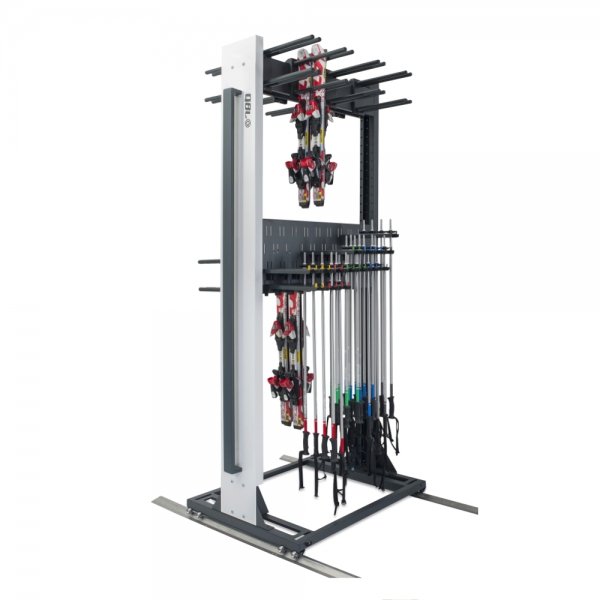

Universal Plus MiniPanel

An exceptional visual feature of the MiniPanel line is its design with a stylish white panel and a grey handle attached to the front column.

The rack is composed of such elements as a frame, columns, two horizontal crossbars and hooks mounted on the crossbars. There are two possible types of crossbars. The first one is designed to accommodate hooks for skis, whereas a more complex construction of the second type enables the storage of ski poles. Each ski hook, which is coated with a special rubber material that allows stable and safe ski storage, can accommodate two or three pairs of skis. Hooks for ski poles are in the form of specially designed two steel arms between which it is possible to store up to four pairs of poles.

Adjustable-height horizontal crossbars enable the storage of skis and poles of different sizes and give the possibility to freely arrange hooks on the crossbars, which results in an exceptional functionality and capacity of this rack. When the winter season is over, ski hooks can be easily replaced with bike hooks, and therefore a ski rental shop can become a bicycle rental business.

Rack elements exposed to corrosion are made of powder coated galvanized steel.

FEATURES

  • large capacity for storing skis and poles of different sizes and types
  • 2 to 3 pairs of skis can be stored on hooks covered with anti-slip rubber material
  • each hook can hold up to 4 pairs of ski poles
  • ski hooks can be replaced with special bicycle hooks
  • made of powder coated galvanized steel
  • interesting design thanks to an elegant combination of a white panel and a grey handle
  • can be mounted on rails, wheels or feet
Délka Šířka Výška Kapacita*
1500 mm 800 mm 2420 mm 45 + 124
1800 mm 800 mm 2420 mm 54 + 156
2000 mm 800 mm 2420 mm 63 + 172
2400 mm 800 mm 2420 mm 81 + 212

*calculated for an average width of carving skis and assuming that the poles are stored on one side of one of the two crossbars (pairs of skis + pairs of poles)


Délka Šířka Hloubka Kapacita*
1500 mm 800 mm 2420 mm 30 + 248
1800 mm 800 mm 2420 mm 36 + 312
2000 mm 800 mm 2420 mm 42 + 344
2400 mm 800 mm 2420 mm 54 + 424

*calculated for an average width of carving skis and assuming that the poles are stored on both sides of one of the two crossbars (pairs of skis + pairs of poles)
